HOME > PRODUCTS > Recessed > Recessed Panel Light

P3

Versatile Low Profile LED Recessed Panel Light

This super-thin recessed panel light can fit any kind of ceiling with limited space, also can be surface mounted with frame mounting kit.

Description

Plastic housing & PS diffuser
IP20 or IP54 optional
3xCCT by DIP switch model available
Split junction box version available
Frame for surface mount available


Specifications

Item Wattage Lumen Voltage Hole Size Beam Angle Dimension

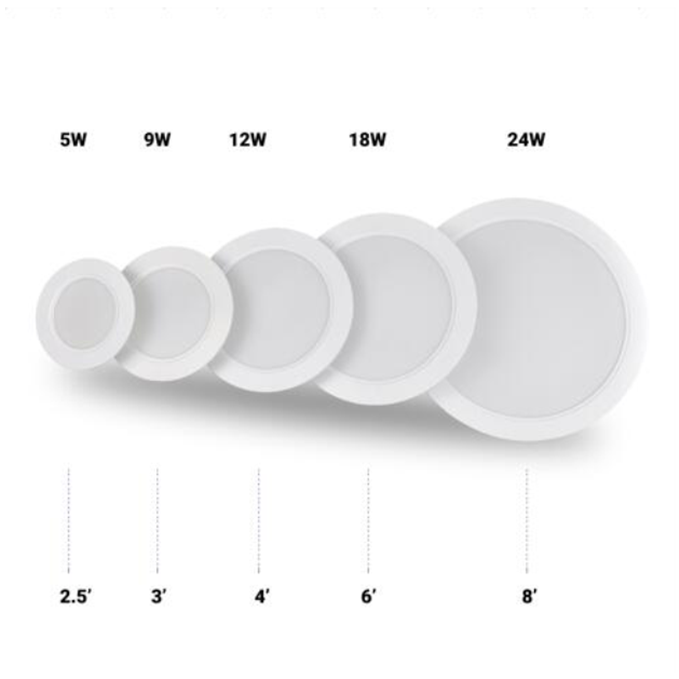

P3-RR-2.5'-5 5W 400lm AC220-240V 75-90mm 110° φ95×26mm
P3-RR-3'-9 9W 900lm AC220-240V 90-110mm 110° φ120×26mm
P3-RR-4'-12 12W 1250lm AC220-240V 120-135mm 110° φ145×26mm
P3-RR-6'-18 18W 1900lm AC220-240V 140-160mm 110° φ170×26mm
P3-RR-8'-24 24W 2600lm AC220-240V 190-210mm 110° φ220×26mm

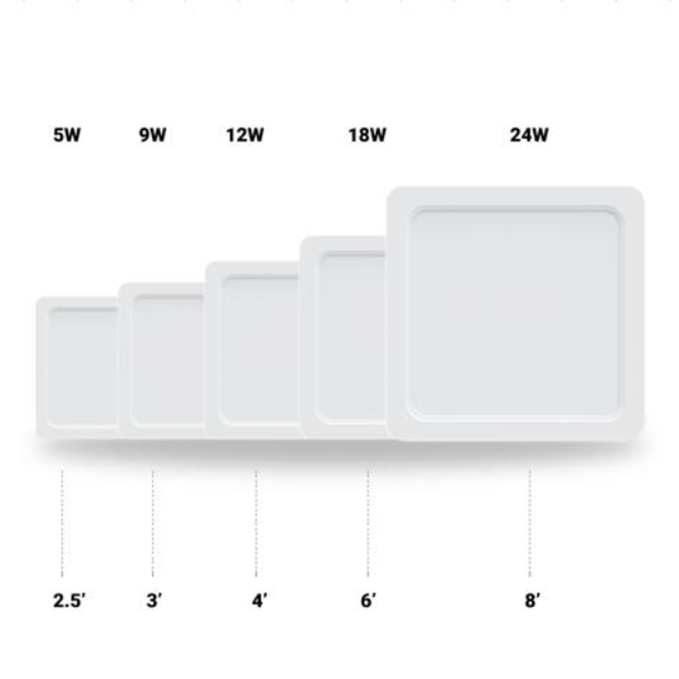

P3-RS-2.5'-5 5W 400lm AC220-240V 75-90mm 110° 95x95×26mm
P3-RS-3'-9 9W 900lm AC220-240V 90-110mm 110° 120x120×26mm
P3-RS-4'-12 12W 1250lm AC220-240V 120-135mm 110° 145x145×26mm
P3-RS-6'-18 18W 1900lm AC220-240V 140-160mm 110° 170x170×26mm
P3-RS-8'-24 24W 2600lm AC220-240V 190-210mm 110° 220x220×26mm
