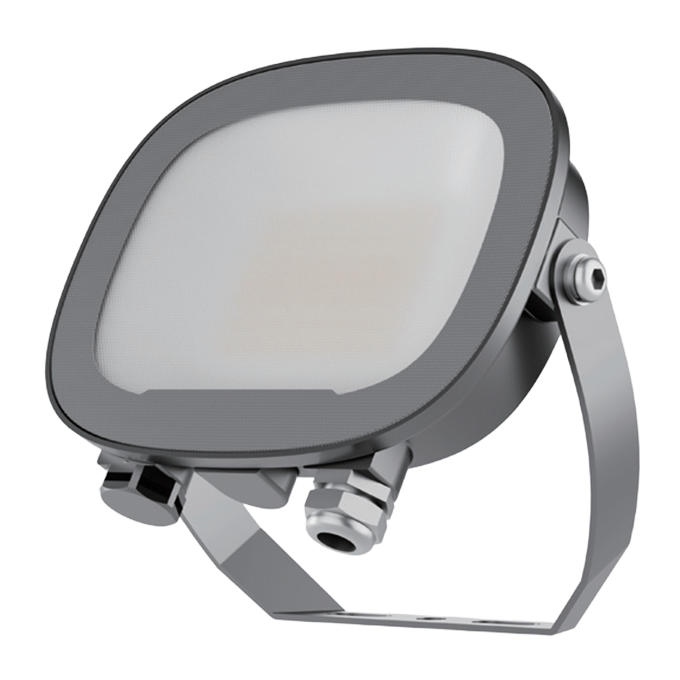

Premium LED Floodlight

UD-11

Very tough design, high-end quality

Description

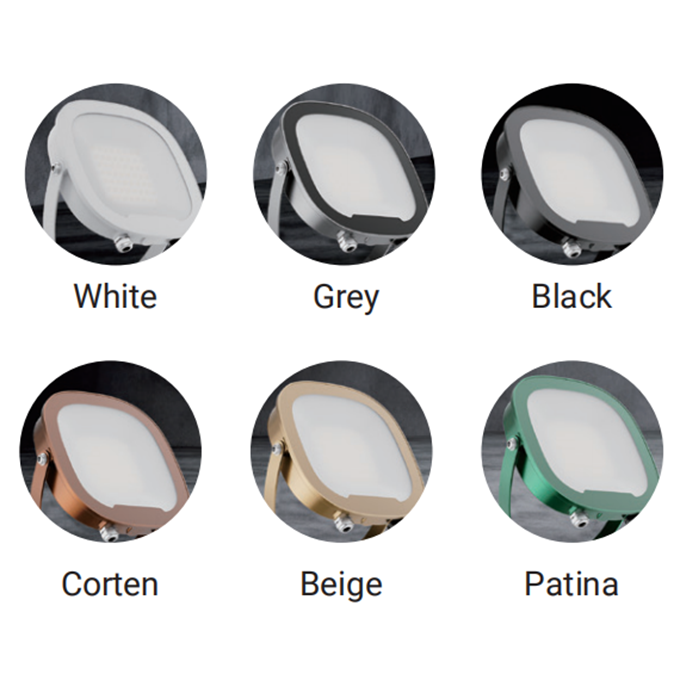

Fresh looking, attractive color option
115lm/w from 10w to 200w full series
3CCT version optional
Plug-and-play sensor optional

Specifications

Item	Wattage	Lumen	Voltage	IP	Beam Angle	Dimension
UD-10-11	10W	1150lm	AC220-240V	IP65	110°	100x77x25mm
UD-30-11	30W	3450lm	AC220-240V	IP65	110°	137x112x25mm
UD-50-11	50W	5750lm	AC220-240V	IP65	110°	165x165x32mm
UD-100-11	100W	11500lm	AC220-240V	IP65	110°	239x239x36mm
UD-150-11	150W	17250lm	AC220-240V	IP65	110°	284x284x38mm
UD-200-11	200W	23000lm	AC220-240V	IP65	110°	316x316x38mm

UD-30-CCT-11	30W	3450lm	AC220-240V	IP65	110°	137x112x25mm
UD-50-CCT-11	50W	5750lm	AC220-240V	IP65	110°	165x165x32mm
UD-100-CCT-11	100W	11500lm	AC220-240V	IP65	110°	239x239x36mm
UD-150-CCT-11	150W	17250lm	AC220-240V	IP65	110°	284x284x38mm
UD-200-CCT-11	200W	23000lm	AC220-240V	IP65	110°	316x316x38mm

UD-10-PIR-11	10W	1150lm	AC220-240V	IP65	110°	100x77x25mm
UD-30-PIR-11	30W	3450lm	AC220-240V	IP65	110°	137x112x25mm
UD-50-PIR-11	50W	5750lm	AC220-240V	IP65	110°	165x165x32mm
UD-100-PIR-11	100W	11500lm	AC220-240V	IP65	110°	239x239x36mm
UD-150-PIR-11	150W	17250lm	AC220-240V	IP65	110°	284x284x38mm
UD-200-PIR-11	200W	23000lm	AC220-240V	IP65	110°	316x316x38mm

UD-10-11-X	10W	1150lm	AC220-240V	IP65	110°	100x77x25mm
UD-30-11-X	30W	3450lm	AC220-240V	IP65	110°	137x112x25mm
UD-50-11-X	50W	5750lm	AC220-240V	IP65	110°	165x165x32mm
UD-100-11-X	100W	11500lm	AC220-240V	IP65	110°	239x239x36mm

Plug&Play Sensor	n/a	n/a	n/a	n/a	n/a	43.5x73mm
