Backlit

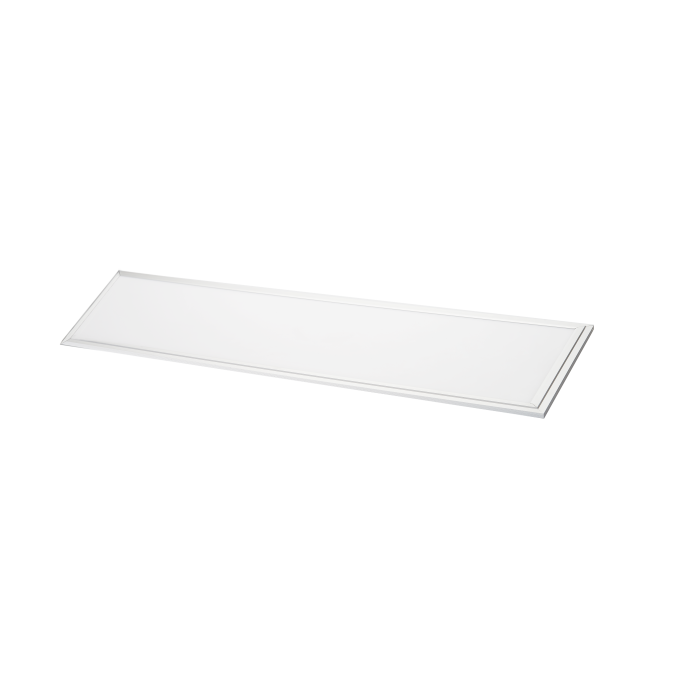

LED Backlit Panel

This backlit panel has no yellowing issue any more, worry free aftersales.


Description

Aluminum frame & Steel sheet base
Recessed/surface/suspension mounting optional
Uniform, no yellowing issue
UGR<19
Up to 130lm/W


Specifications

Item Wattage Lumen Voltage IP Beam Angle Dimension
PL-Backlite-6060-40-100 40W 4000lm AC220-240V IP20 120° 595x595x32mm
PL-Backlite-6060-40-130 40W 5200lm AC220-240V IP20 120° 595x595x32mm
PL-Backlite-30120-40-100 40W 4000lm AC220-240V IP20 120° 295x1195x32mm
PL-Backlite-30120-40-130 40W 5200lm AC220-240V IP20 120° 295x1195x32mm
