Description
ABS housing & PC diffuser
Merrytek HF sensor model available
3xCCT by DIP switch model available
Easy installation
Round or square optional
CL8

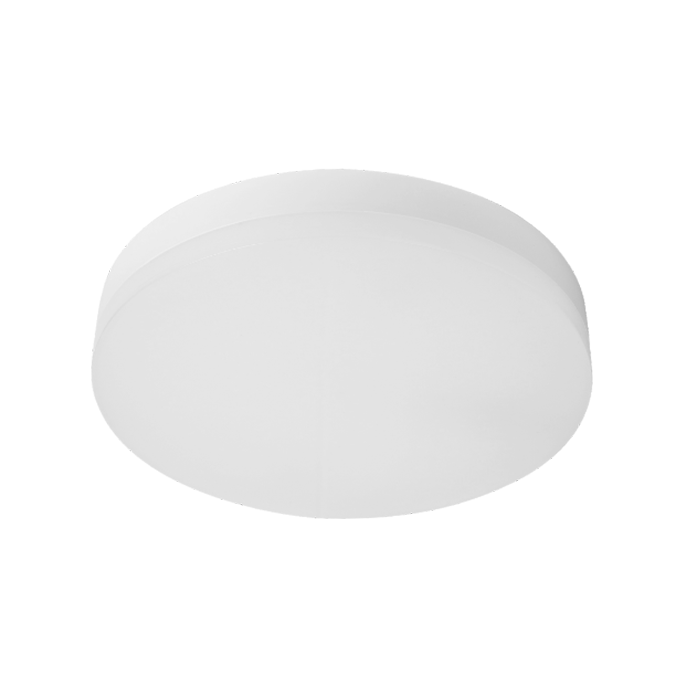

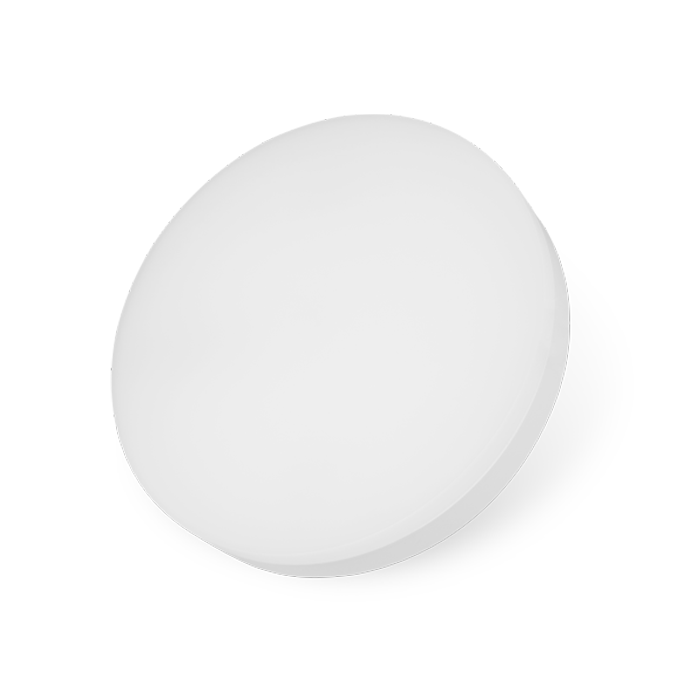

This low profile ceiling light suitable for any decoration with simplist design, HF sensor function save more energy on daily use.
ABS housing & PC diffuser
Merrytek HF sensor model available
3xCCT by DIP switch model available
Easy installation
Round or square optional
| Item | Wattage | Lumen | Voltage | IP | Beam Angle | Dimension |
| CL8-D220-12RD | 12W | 1080lm | AC220-240V | IP44 | 120° | φ220x56.4mm |
| CL8-D280-18RD | 18W | 1620lm | AC220-240V | IP44 | 120° | φ280x56.4mm |
| CL8-D280-24RD | 24W | 2160lm | AC220-240V | IP44 | 120° | φ280x56.4mm |
| CL8-D330-30RD | 30W | 2700lm | AC220-240V | IP44 | 120° | φ330x56.4mm |
| CL8-D330-36RD | 36W | 3240lm | AC220-240V | IP44 | 120° | φ330x56.4mm |
| CL8-D220-12SE | 12W | 1080lm | AC220-240V | IP44 | 120° | 220x220x56.4mm |
| CL8-D280-18SE | 18W | 1620lm | AC220-240V | IP44 | 120° | 280x280x56.4mm |
| CL8-D280-24SE | 24W | 2160lm | AC220-240V | IP44 | 120° | 280x280x56.4mm |
| CL8-D220-12RD-MS | 12W | 1080lm | AC220-240V | IP44 | 120° | φ220x56.4mm |
| CL8-D280-18RD-MS | 18W | 1620lm | AC220-240V | IP44 | 120° | φ280x56.4mm |
| CL8-D280-24RD-MS | 24W | 2160lm | AC220-240V | IP44 | 120° | φ280x56.4mm |
| CL8-D330-30RD-MS | 30W | 2700lm | AC220-240V | IP44 | 120° | φ330x56.4mm |
| CL8-D330-36RD-MS | 36W | 3240lm | AC220-240V | IP44 | 120° | φ330x56.4mm |
| CL8-D220-12SE-MS | 12W | 1080lm | AC220-240V | IP44 | 120° | 220x220x56.4mm |
| CL8-D280-18SE-MS | 18W | 1620lm | AC220-240V | IP44 | 120° | 280x280x56.4mm |
| CL8-D280-24SE-MS | 24W | 2160lm | AC220-240V | IP44 | 120° | 280x280x56.4mm |
Classic design with decorative ring,available
